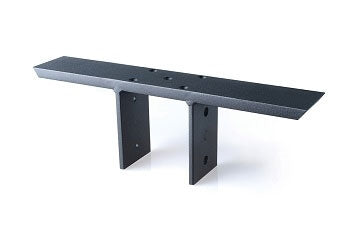

Countertop support bracket - Center Levered

This is our preferred Countertop Support Bracket for applications that requires support on both sides of a knee wall or other structure such as a bar or off set overhang.

The body of the bracket is 2.5 x 1/2 inch solid steel and tapered at both ends for safety. The flanges are made 2.5 x 4 x 1/4 inch steel. The granite support bracket has five countersunk mounting holes centered in the top plate as well as front and rear supports that attach to the knee wall and support studs to ensure a secure connection to the knee wall and acting as stiffeners for the whole application.

When ordering our Center Lever Countertop Support Brackets please be sure to double check the width of the wall they will be mounted on. Lumber when initially cut is considered “rough sawn” and the rough size for say a 2” x 4” is in fact 2” x 4”. But when lumber is used structurally in commercial or residential environments it needs to be milled on all sides to ensure it is smooth, straight and uniform. In the case of a 2” x 4” the actual size of the prepared lumber would be 1.5” x 3.5”.

NOTE: The default saddle for the Center Levered bracket is spaced for a 2x4 knee wall and assumes an equal overhang on both sides of the wall. We can easily adjust the saddle to fit a 2x6, 2x8, 2x10 or 2x12 wall and offset the saddle for uneven overhangs.

However, you will need to let us know to make these adjustments. If placing the order online just include the information in the comment box on the checkout page. Or give us a call at 888-960-3854 to place the order with one of our friendly and knowledgeable customer service reps.

The Center Levered Granite Support Bracket comes in sizes from 14 inches to 44 inches.

To successfully utilize this bracket, building a quality knee wall is crucial.

Mounting hardware is included.
